Images from the Wide Field Cameras:
Click on the images for the data on that part of the sky.

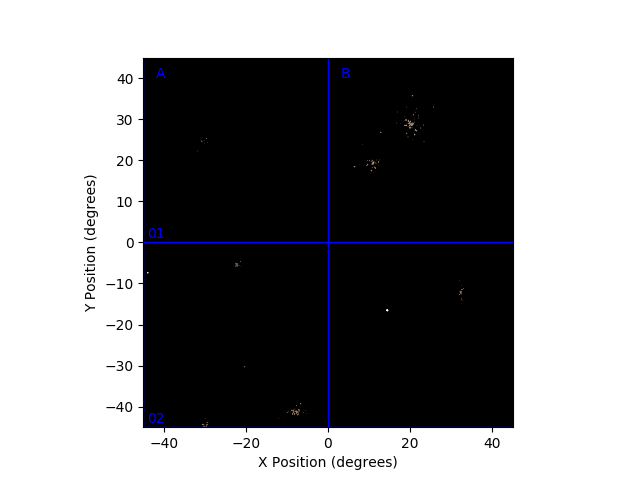

Front Camera Image
![](Front/indexim.png)
"Up" image joins the top of this image, "Down" the bottom, "Left" the left and "Right" the right

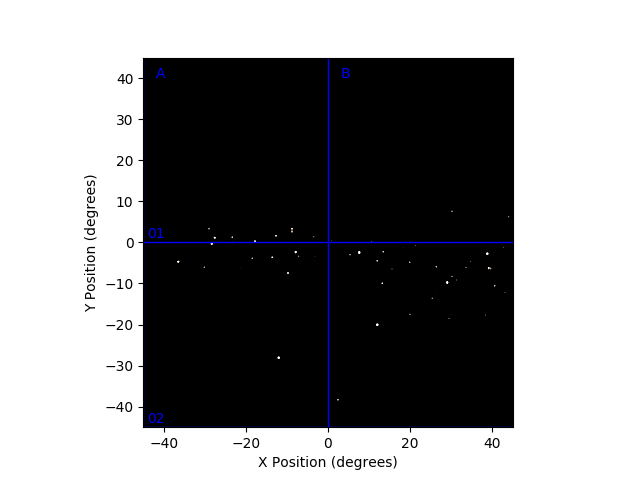

Back Camera Image
![](Back/indexim.png)
"Up" image joins the top of this image, "Down" the bottom, "Right" the left and "Left" the right

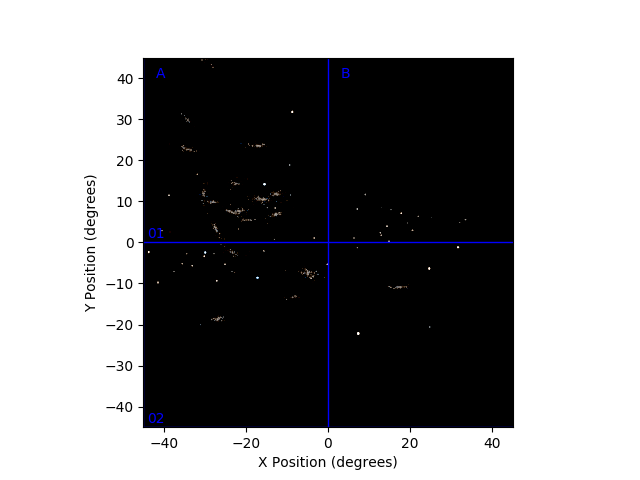

Left Camera Image
![](Left/indexim.png)
"Up" image joins the top of this image, "Down" the bottom, "Back" the left and "Front" the right

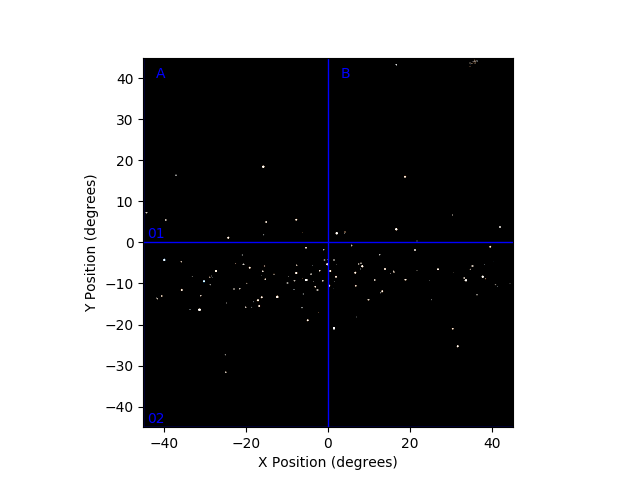

Right Camera Image
![](Right/indexim.png)
"Up" image joins the top of this image, "Down" the bottom, "Front" the left and "Back" the right
Up Camera Image
![](Up/indexim.png)
"Back" image joins the top of this image, "Front" the bottom, "Left" the left and "Right" the right
Down Camera Image
![](Down/indexim.png)
"Front" image joins the top of this image, "Back" the bottom, "Left" the left and "Right" the right
X-ray All-sky Camera Data
The X-ray camera did not detect any steady sources. It did detect, however, a
number of extremely short X-ray flashes coming from various parts of the sky.
Each flash lasts 87 milliseconds, but the number of
photons detected from each flash is quite variable.
Here is a list of the flashes detected, with their rough positions and number of photons.
Positions are given by where they would appear in the relevant wide-field camera image.
NB. positions are only accurate to 0.20 degrees (one standard deviation)
The X-ray camera is sensitive to bursts of more than 349 photons only.
Camera Direction | X | Y | Photons detected |
  | (deg) | (deg) |   |
Front | -15.679 | 10.535 | 6303319 |
Front | -33.973 | 29.595 | 1644763 |
